[Lifetime Warranty] W10352689 Refrigerator Main Control Board 4388931 Adaptive Defrost Board - Compatible with Whirlpool Kenmore Maytag KitchenAid - Replaces W10352689 WPW10352689 AP6020253 PS11753571

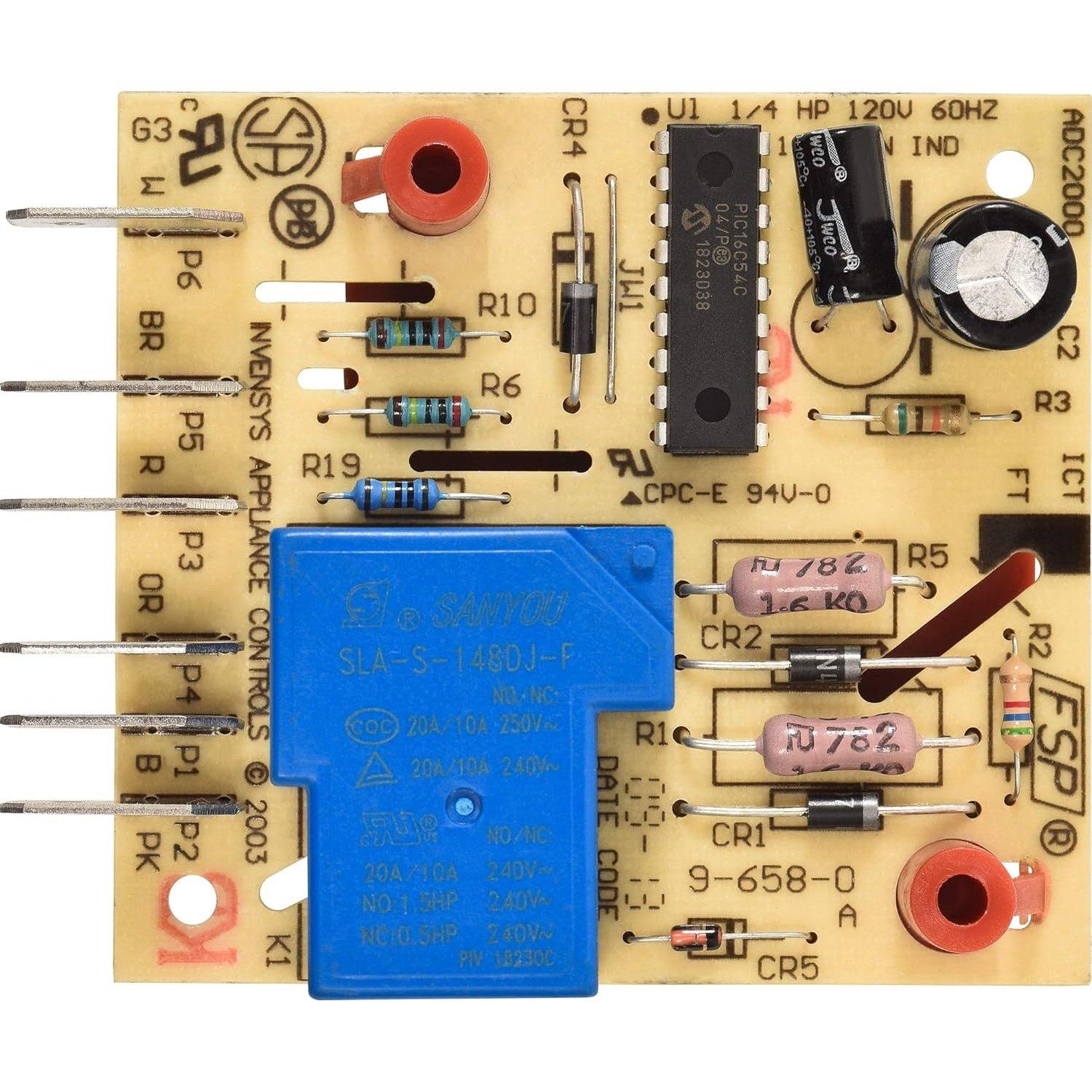

W10352689 Refrigerator Main Control Board

Key Features

• Manages primary refrigerator functions including cooling and defrost cycles.
• Regulates internal temperatures for consistent operation.
• Controls the adaptive defrost system to prevent frost buildup.

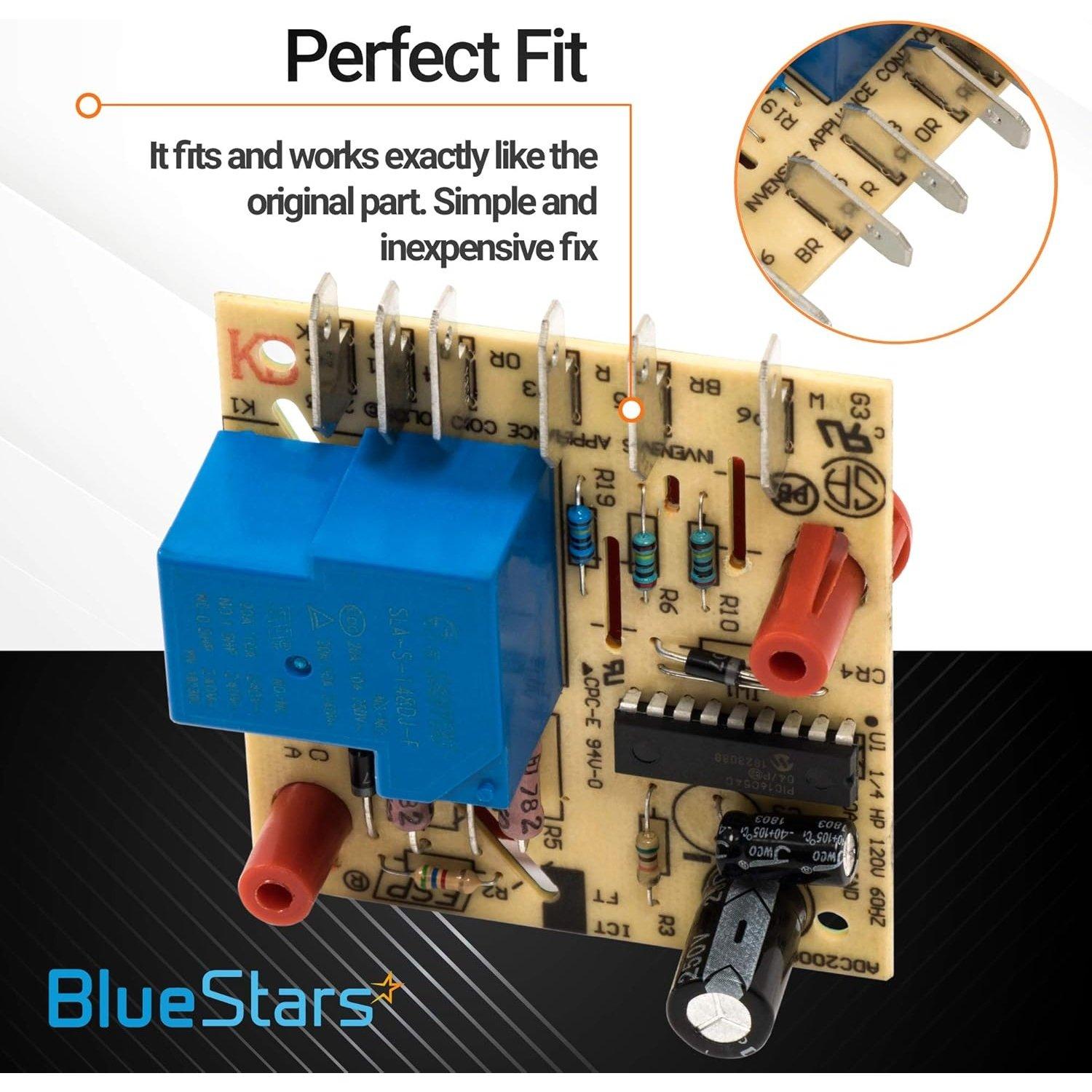

• Serves as a direct replacement for the original electronic control unit.

Replaces / Cross-Reference Part Numbers

• W10352689
• WPW10352689
• AP6020253
• PS11753571
• 4388931

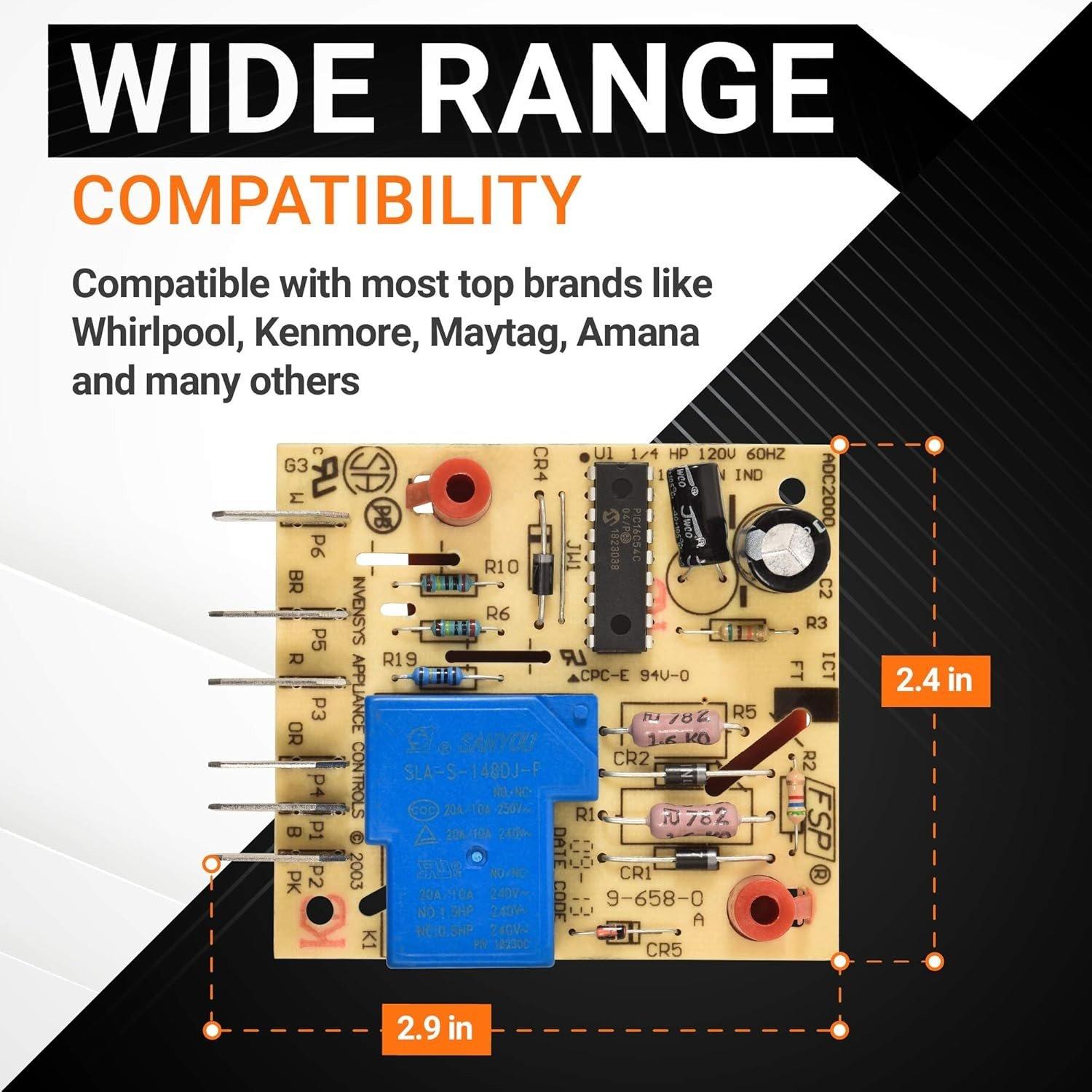

Compatibility & Fitment

• Designed for specific refrigerator models, including many manufactured by Whirlpool.
• May also fit certain models from Kenmore, Maytag, Amana, and KitchenAid.
• Always verify compatibility by checking your appliance's original part number before ordering.

When to Replace

• Refrigerator is not cooling or cooling intermittently.
• Freezer section has excessive frost buildup.
• Compressor fails to start or runs constantly.
• Control panel is unresponsive or displays error codes.
• The appliance has no power despite being connected to a working outlet.

Installation Tips

• Disconnect the refrigerator from the power source before beginning the repair.
• Photograph the wire connections on the original board before removal to ensure correct placement on the new board.
• Handle the new control board by its edges to prevent static discharge damage to electronic components.
• Ensure all wire harnesses are firmly seated in their respective connectors after installation.
