[Lifetime Warranty] WP3387134 3387134 Dryer Cycling Thermostat - Compatible with Whirlpool Kenmore Dryers - Replaces AP6008270 306910 3387135 3387139 ET187 PS11741405 - Pack of 2

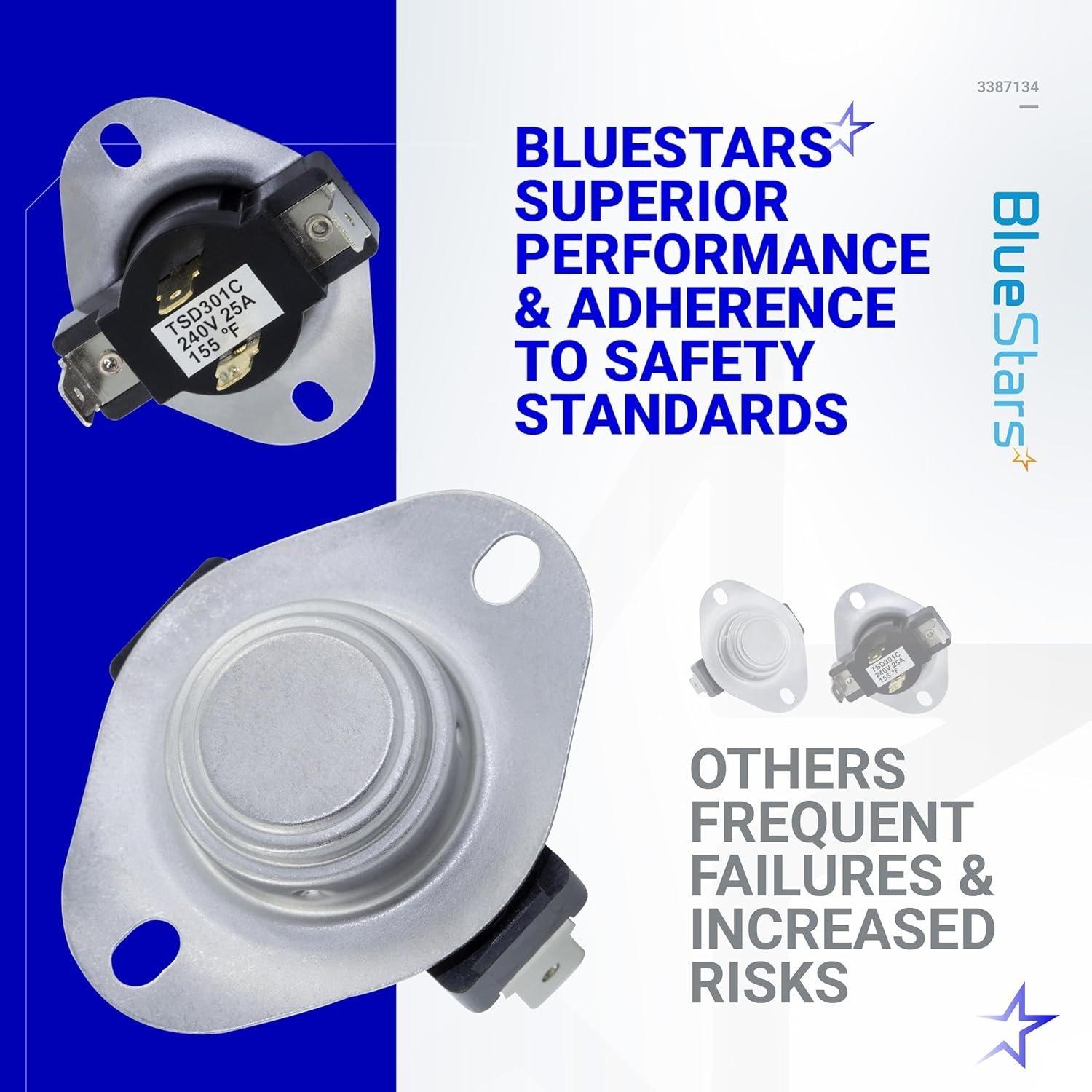

WP3387134 3387134 Dryer Cycling Thermostat - Pack of 2

Key Features

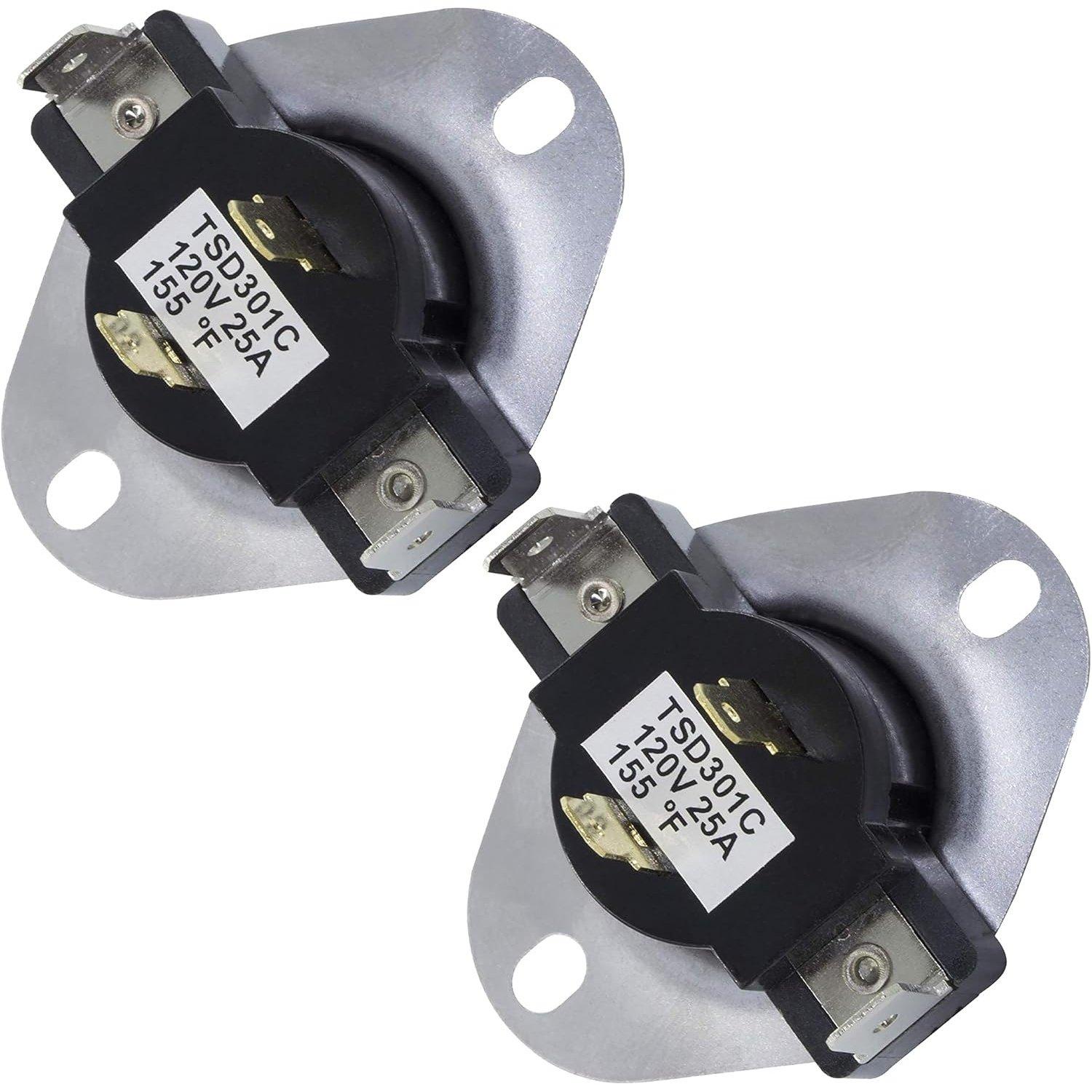

• Package contains two (2) cycling thermostats.
• Regulates the drum temperature by cycling the heat source on and off.
• Specifications: L155-25F. Opens at 155°F and closes at 130°F.
• Commonly resolves issues with improper heating or extended drying times.
• Constructed with two 1/4 inch male spade terminals for connection.

Replaces / Cross-Reference Part Numbers

• 306910
• 3387134
• 3387135
• 3387139
• AP6008281
• ET187
• PS11741416
• WP3387134VP

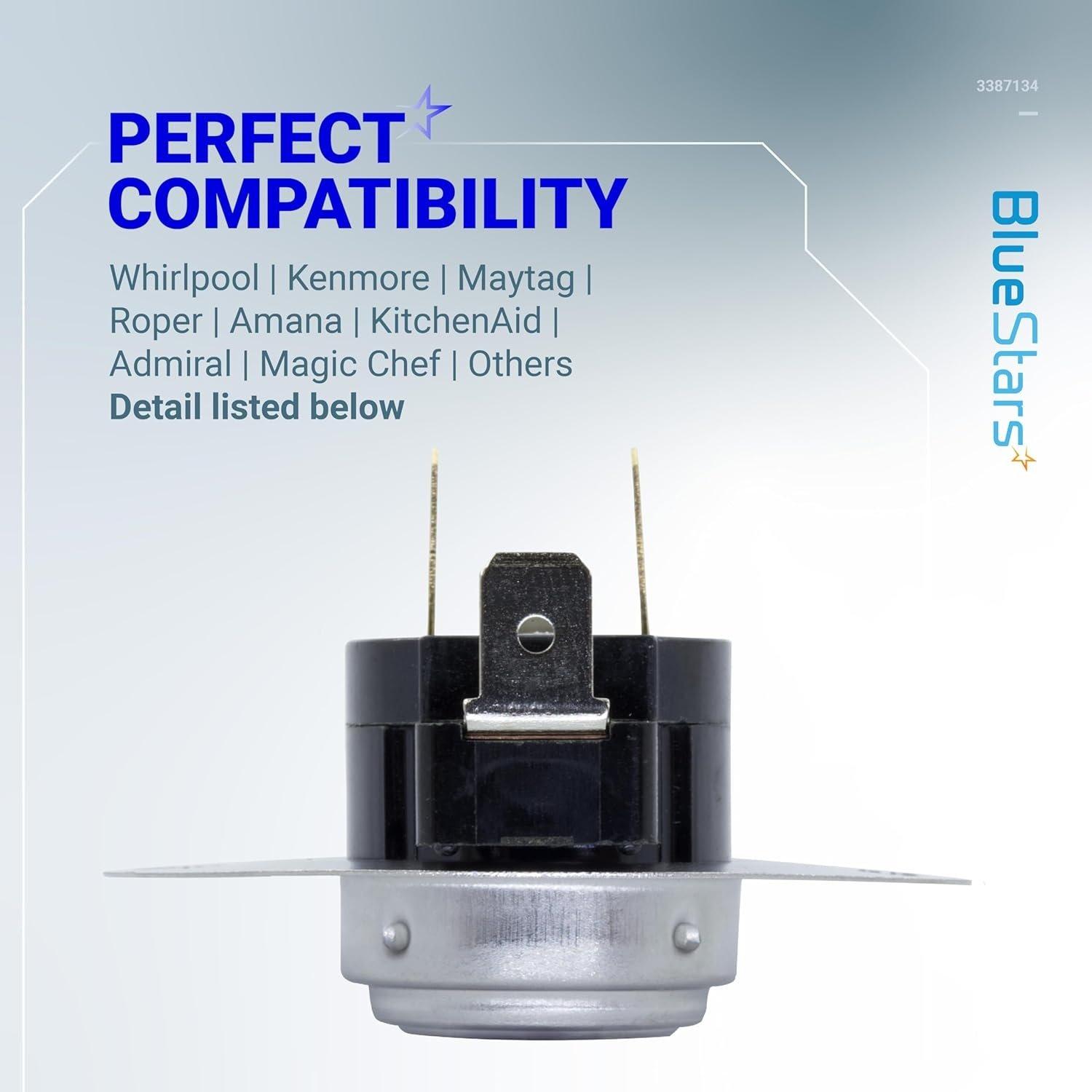

Compatibility & Fitment

• Fits a wide range of dryers from major brands including Whirlpool, Kenmore, Maytag, Roper, KitchenAid, Crosley, Amana, and Estate.
• Confirm fitment by cross-referencing the part number with your specific dryer model's service manual.

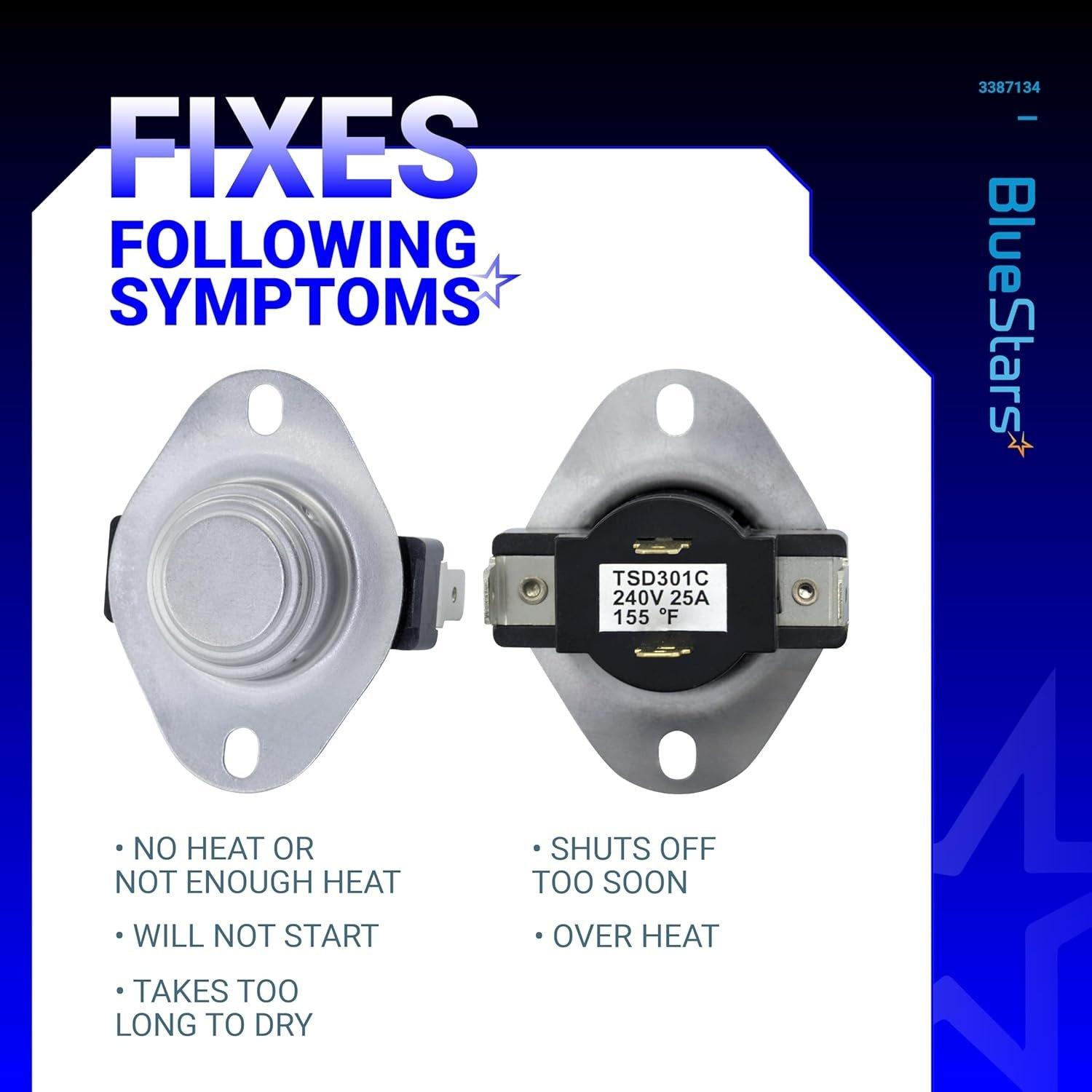

When to Replace

• Dryer does not heat up or produces insufficient heat.
• Dryer overheats and clothes are excessively hot.
• Drying cycles are unusually long.
• The dryer shuts off prematurely during a cycle.

Installation Tips

• Before beginning the repair, disconnect the dryer from its power source.
• If you have a gas dryer, shut off the gas supply line.
• The cycling thermostat is typically located on the blower wheel housing.
• Test the existing thermostat with a multimeter for continuity to verify failure before installing the new part.
• Take a photograph of the wire placement before disconnecting the original thermostat to ensure correct reassembly.
