[Lifetime Warranty] 4389102 W10757851 Refrigerator Ice Maker Sensor Control Board Kit – Compatible with Whirlpool & Kenmore Refrigerators – Replaces 2198586 W10193666 W10193840 W10290817 AP5956767

4389102 W10757851 Refrigerator Ice Maker Sensor Control Boards Kit

Key Features

• Direct replacement for specific refrigerator models.

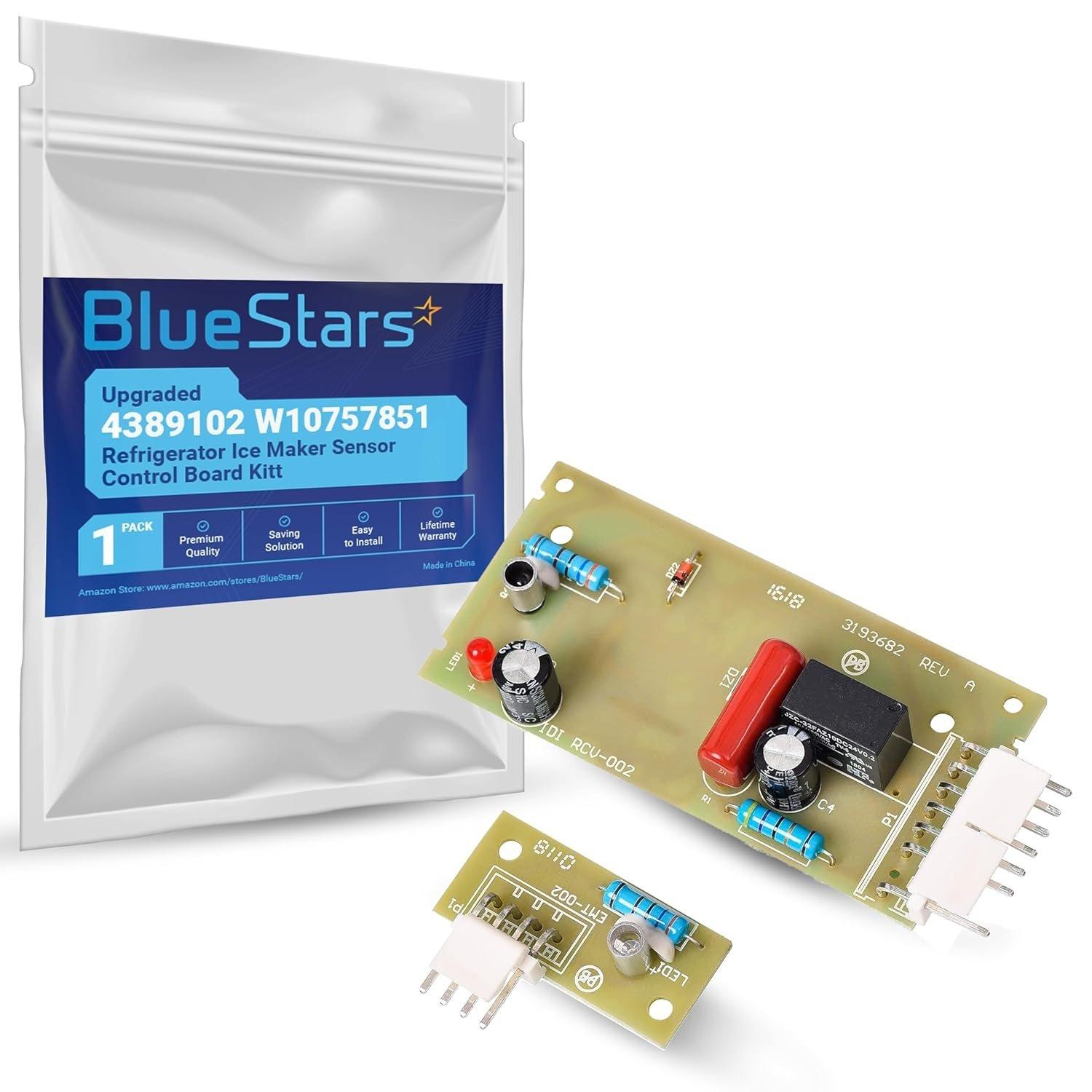

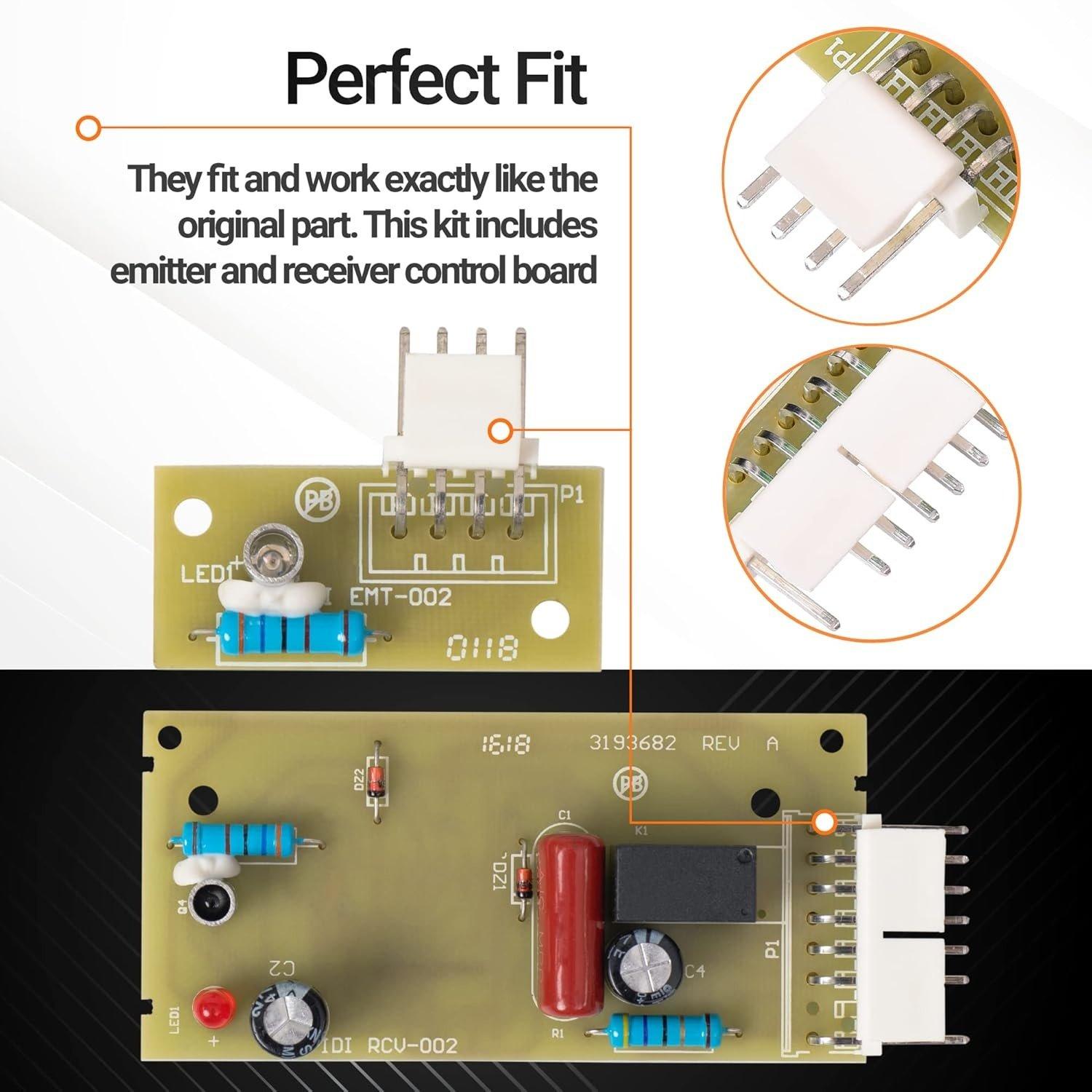

• Kit includes one emitter and one receiver control board.
• Utilizes an infrared sensor system to monitor the ice level in the bin.
• Controls the ice-making cycle to prevent overflow and ensure a consistent supply.

Replaces / Cross-Reference Part Numbers

• 4389102
• W10757851
• 2198586
• 2220398
• 2220402
• W10290817
• ADC9102
• AP5956767

Compatibility & Fitment

• Designed for use with refrigerators that have the ice maker and bin located on the freezer door.

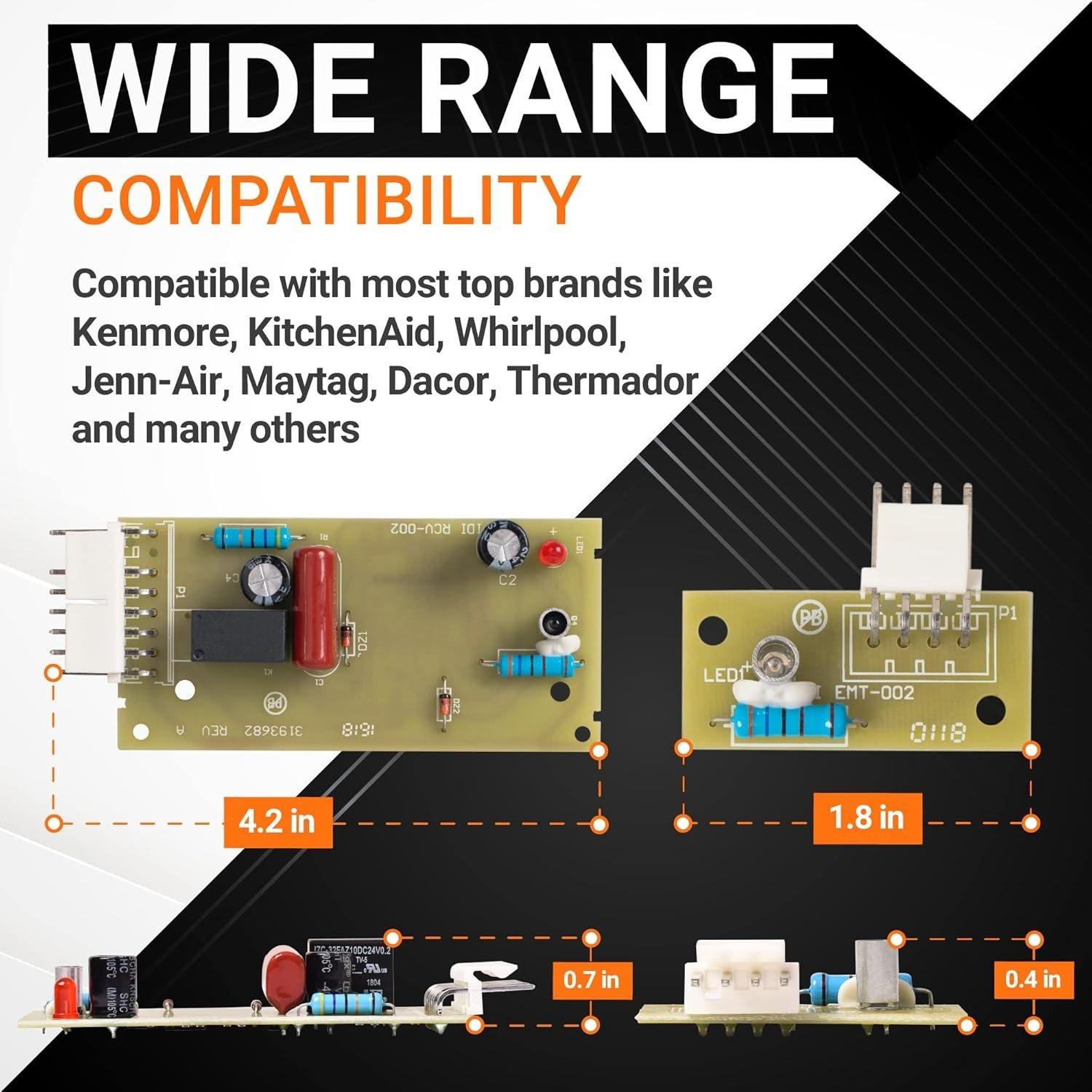

• Fits specific models from brands including Whirlpool, Kenmore, KitchenAid, Maytag, and Jenn Air.
• Verify compatibility by matching your appliance's model number or the original part number.

When to Replace

• Ice maker is not producing ice.
• Ice maker overflows the ice bin.
• A red status light is flashing or blinking on the sensor boards.
• The ice maker will not shut off automatically when the bin is full.

Installation Tips

• Disconnect the refrigerator from its power source before beginning installation.
• Take a picture of the old boards and wire connections before removal for reference.
• Ensure the emitter and receiver boards are aligned correctly for proper function.
• After installation, allow the freezer to reach its normal operating temperature before the ice maker begins a new cycle.
