109-9023 Deck Belt Replacement for Exmark 72 Inch Deck Lazer Z X, Next Lazer Z Series Zero-Turn Mowers - Replaces 1099023 135-5777 135-5777-SL | 5/8" x 219"

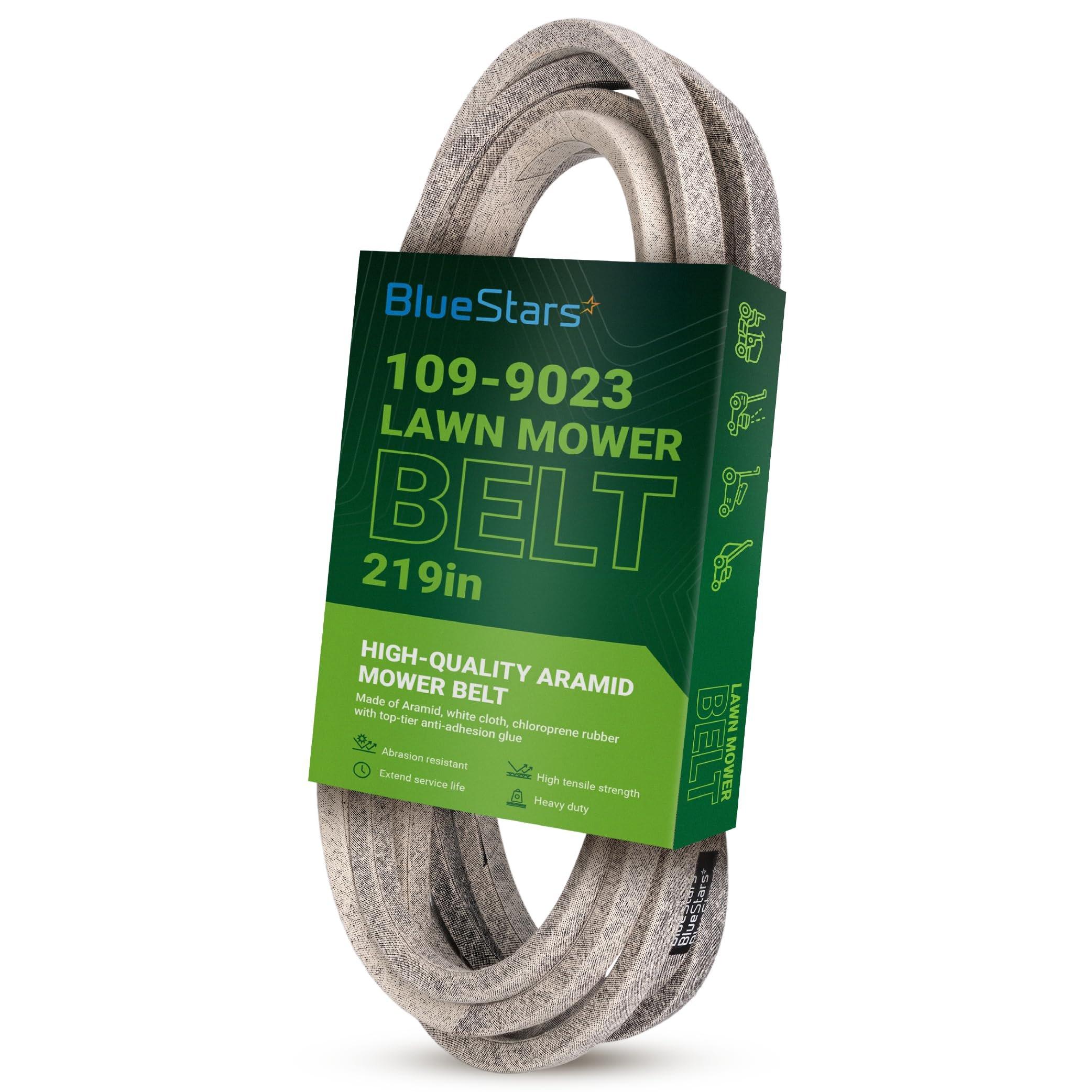

109-9023 Deck Belt (5/8" x 219")

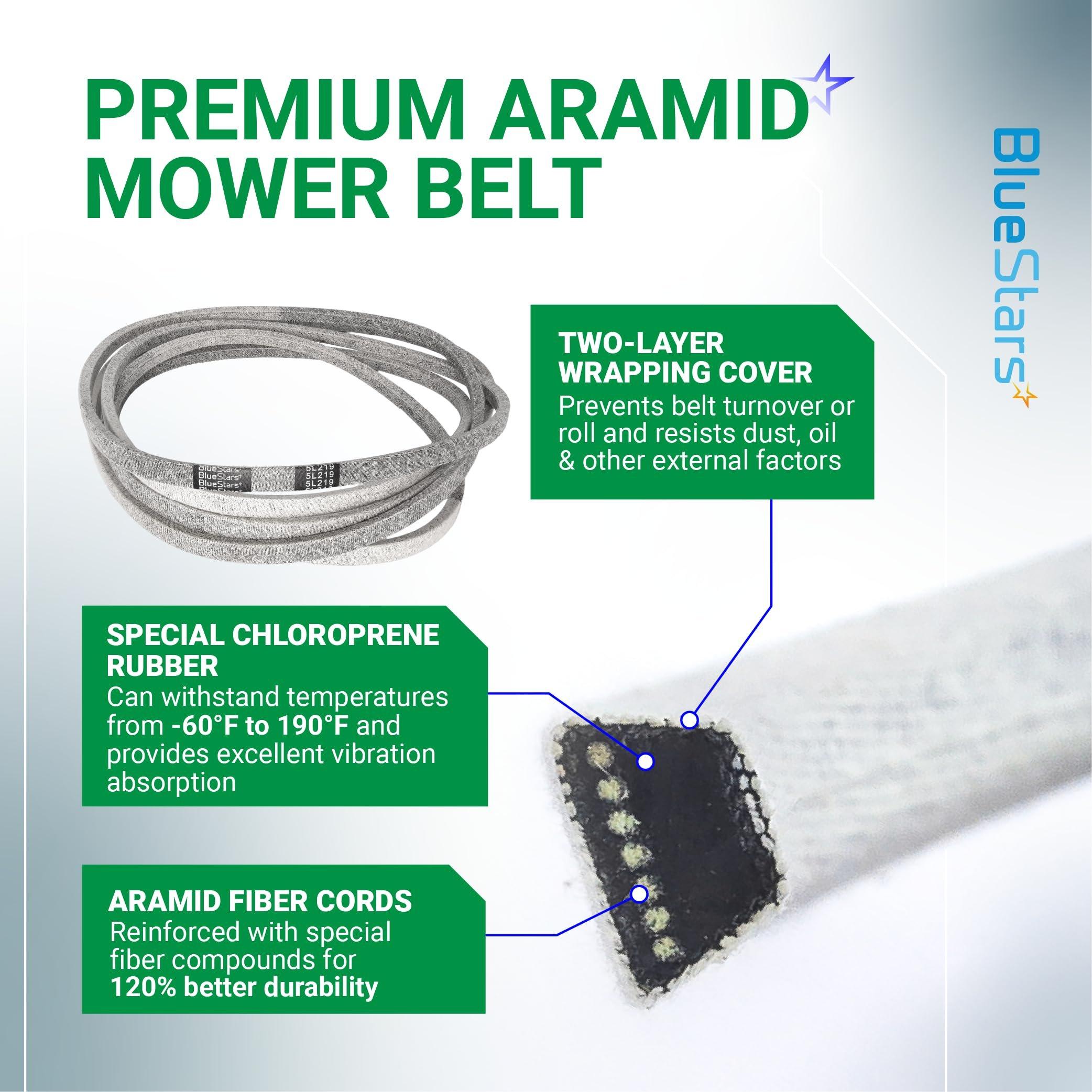

Key Features

• Heavy-duty construction for high-torque lawn mower applications.
• Heat and oil-resistant synthetic rubber compound.
• High-strength tensile cords designed to minimize belt stretch.
• Outer wrap fabric provides increased durability and reduced slippage.

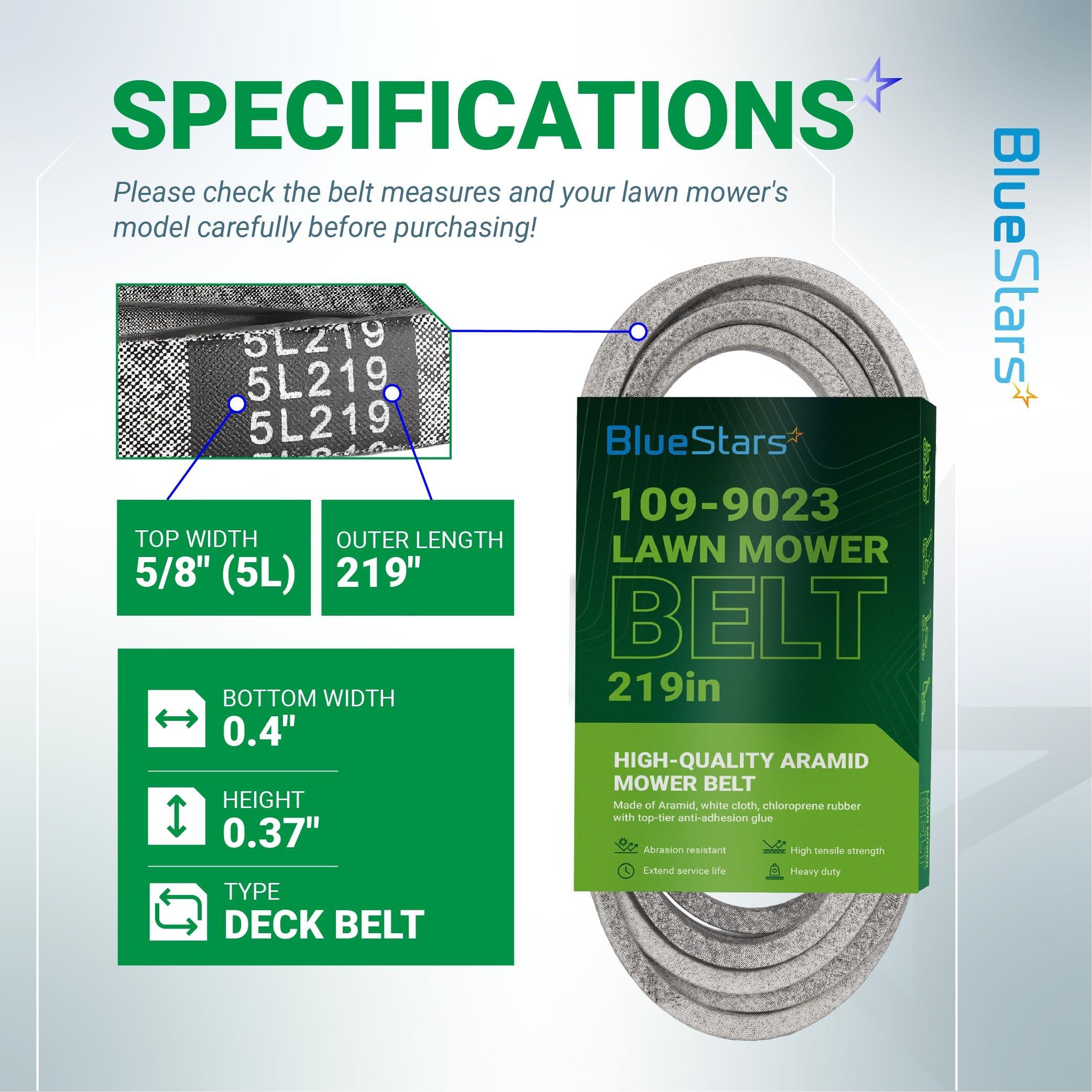

• Dimensions: 5/8 inch width x 219.25 inch effective length.

Replaces / Cross-Reference Part Numbers

• Exmark: 109-9023, 1099023, 135-5777, 135-5777-SL
• Toro: 109-9023, 135-5777

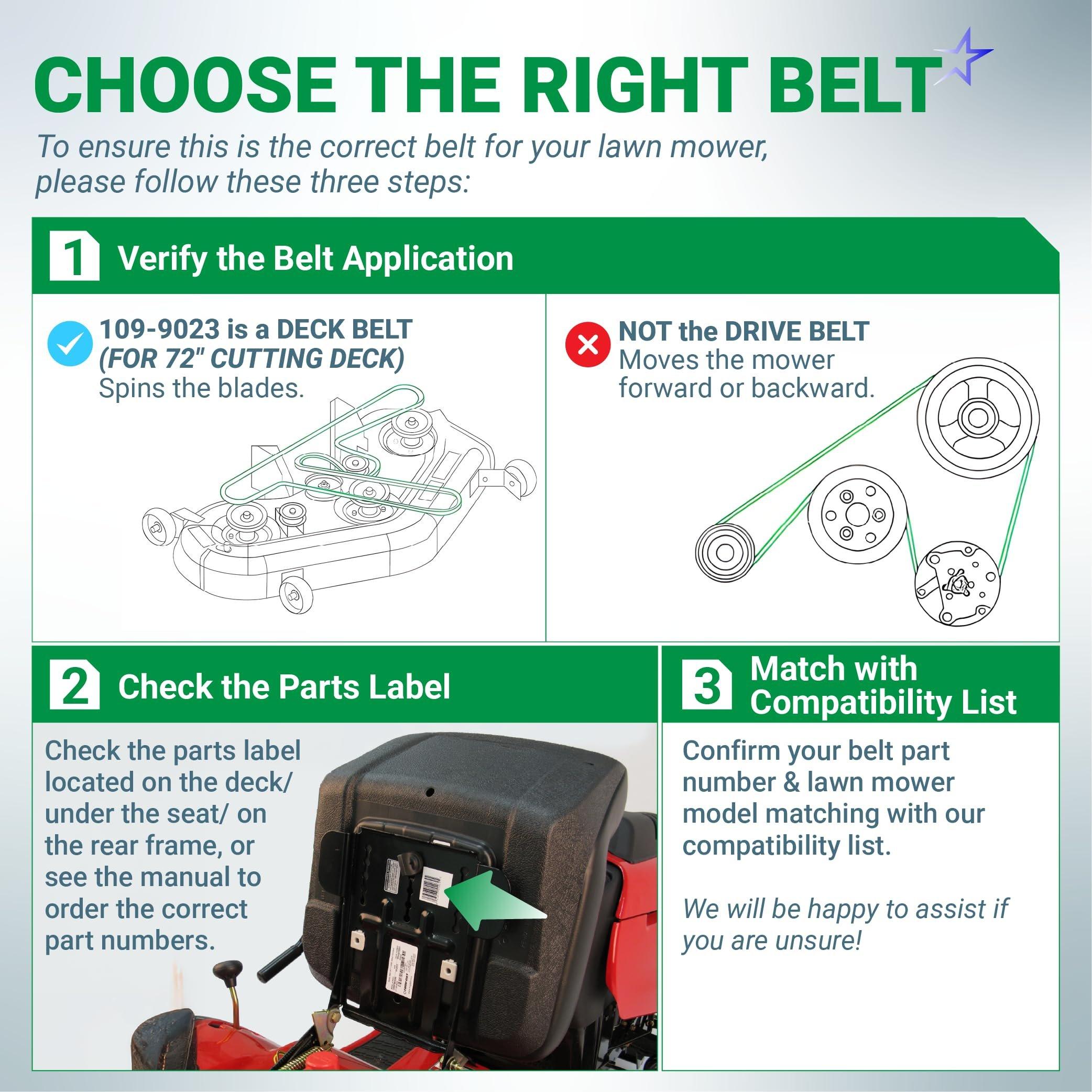

Compatibility & Fitment

• Fits Exmark Lazer Z X-Series zero-turn mowers with 72-inch cutting decks.
• Fits Exmark Next Lazer Z series zero-turn mowers with 72-inch cutting decks.
• Verify deck size and part number against your owner's manual before purchase.

When to Replace

• Visible fraying, cracks, or chunking along the belt edges.
• Excessive slippage or squealing during deck engagement.
• Significant thinning or elongation that prevents proper tensioning.
• Evidence of hardening or glazing due to prolonged heat exposure.

Installation Tips

• Lower the mower deck to the lowest position to improve access to pulleys.
• Remove the belt shields/covers to clear debris and provide enough space for routing.
• Release tension on the idler pulley assembly using a breaker bar or socket wrench.
• Verify that the belt is correctly seated in all pulley grooves before applying full tension.
• Cycle the deck engagement once and re-check tension to ensure the belt has seated properly.
