AZ2792424

[Lifetime Warranty] 2188830 Refrigerator Compressor Relay & Overload Replacement - Compatible with Whirlpool & Kenmore Refrigerators - Replaces 2220475 PS993073 2188829 1177466

Sold 4,262

Difficulty Icon: Easy
Easy
More than 30 minutes

$11.70

$12.99

Save $1.29
In Stock

Fast delivery

puzzle

Confirm the fit for your model

Find your model number and check it here to see if the part fits.


Description

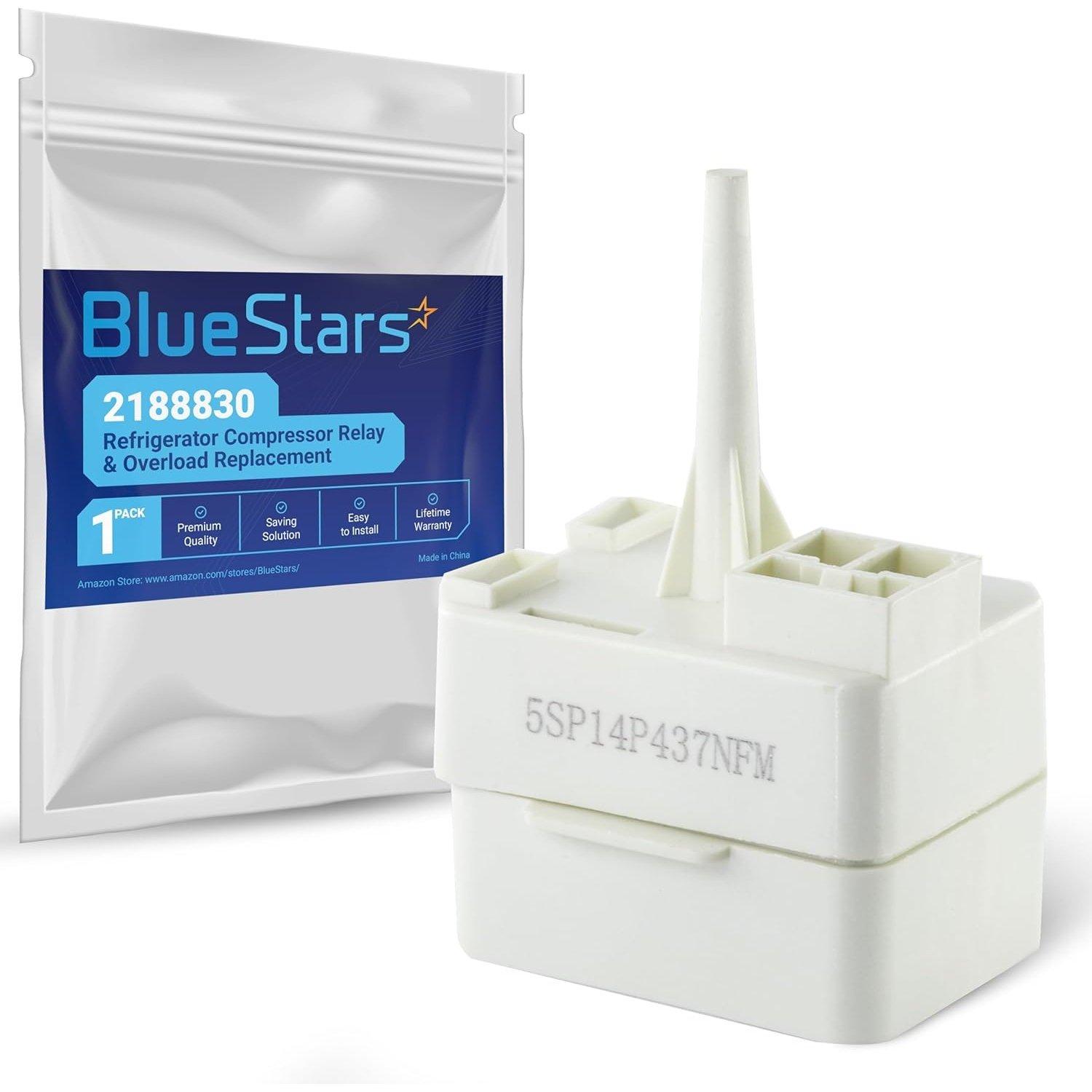

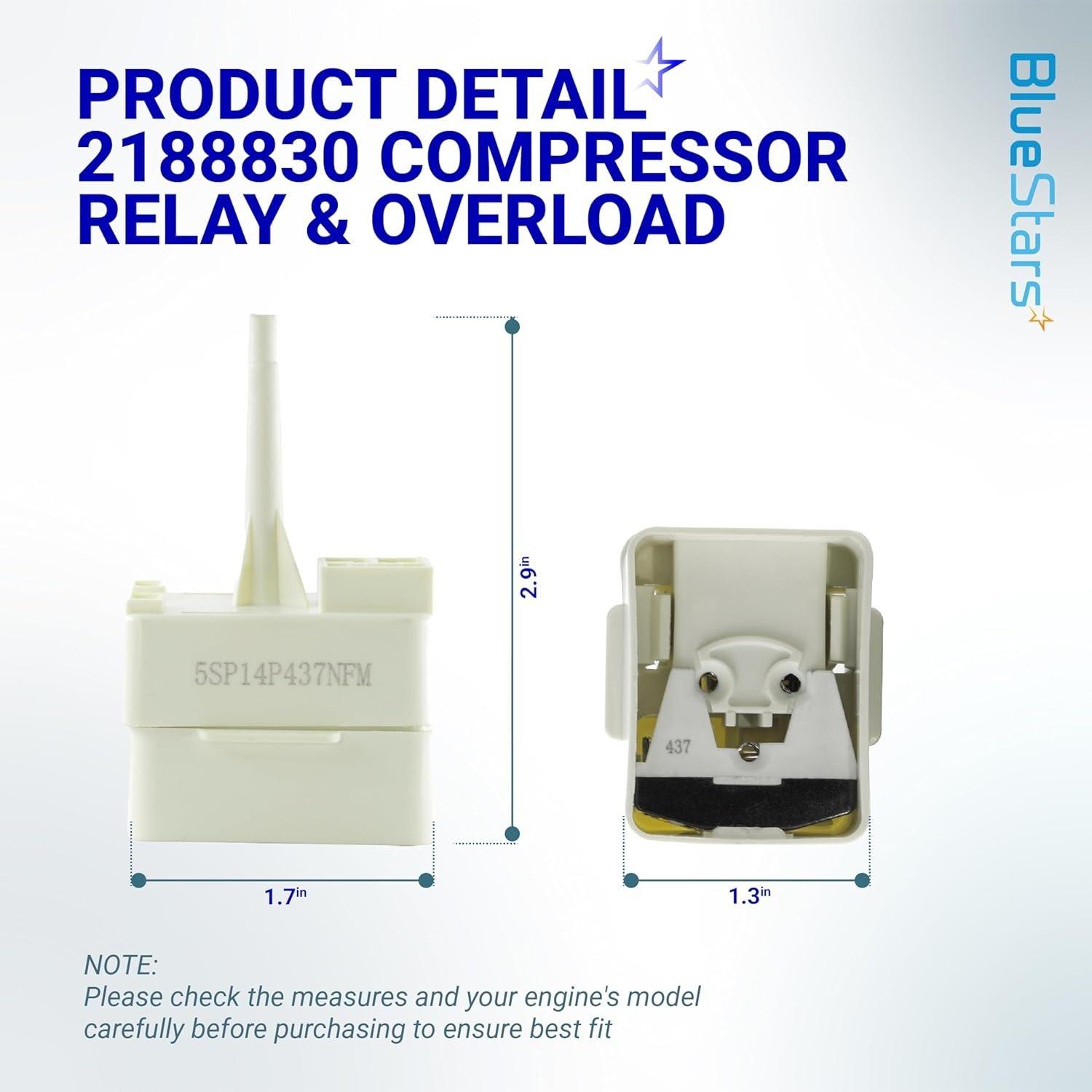

2188830 Refrigerator Compressor Relay & Overload

Key Features

  • Combines the start relay and overload protector into a single assembly.
  • Initiates the compressor motor's start winding.
  • Protects the compressor from damage due to overheating or excessive current draw.
  • Direct replacement for specified OEM part numbers.

Replaces / Cross-Reference Part Numbers

  • 2188830
  • 8201786
  • 2220475

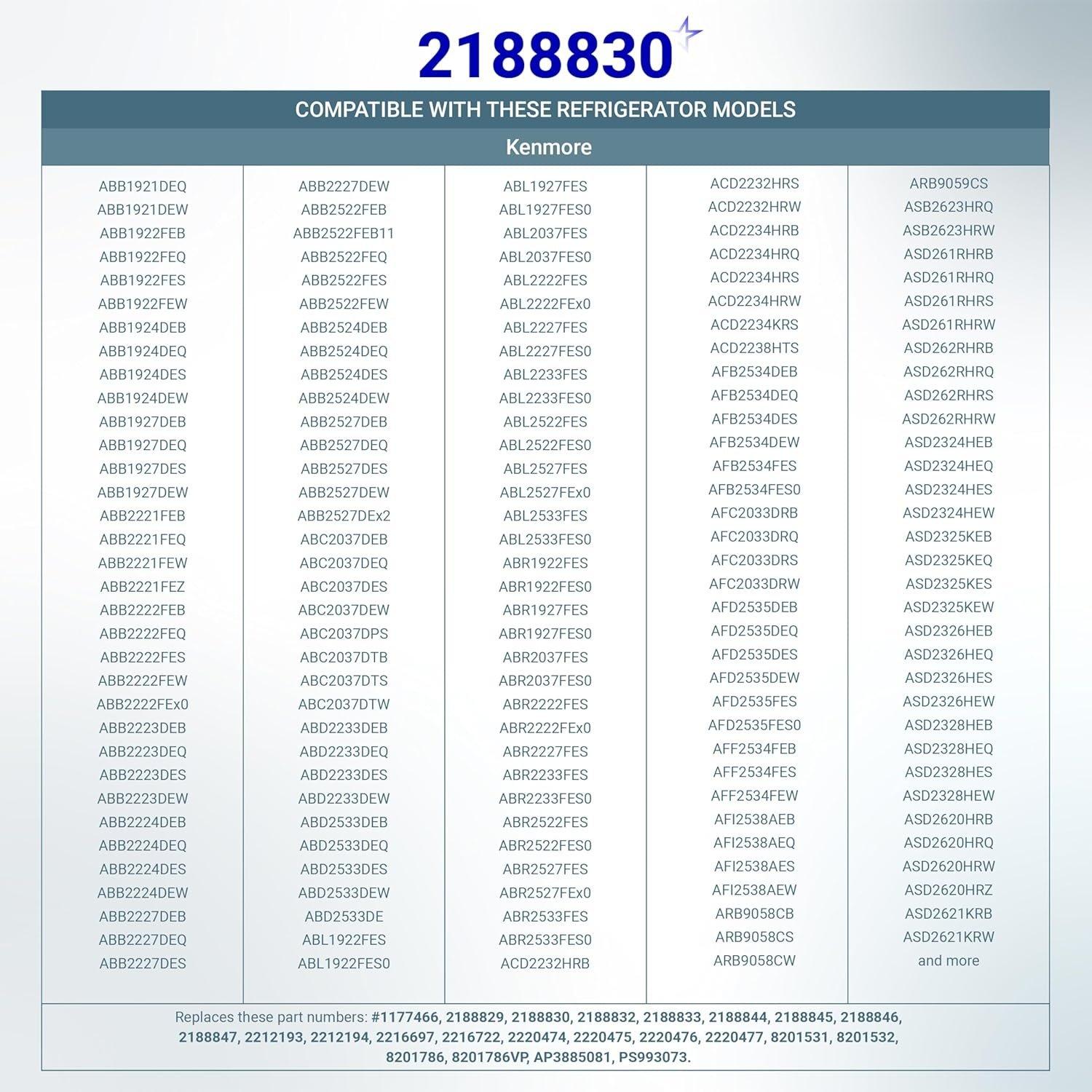

Compatibility & Fitment

  • Designed for various refrigerator models from brands including Whirlpool, Kenmore, Roper, and KitchenAid.
  • Confirm fitment by cross-referencing your appliance's original part number.

When to Replace

  • Refrigerator is not cooling, but lights are on.
  • A clicking sound is heard from the compressor area every few minutes.
  • The compressor is unusually hot to the touch but does not run.
  • The compressor attempts to start but shuts off immediately.

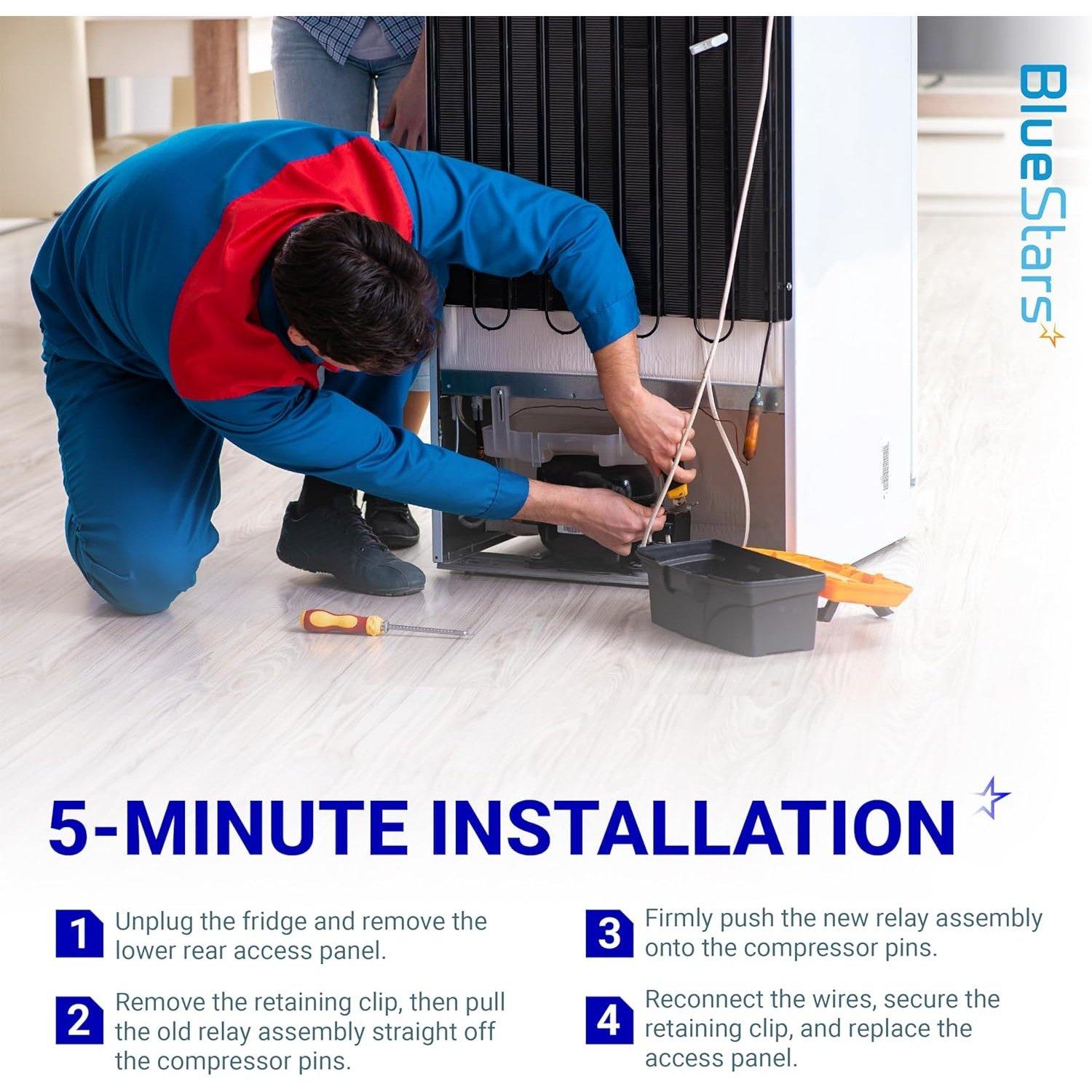

Installation Tips

  • Disconnect the refrigerator from the power source before beginning any repairs.
  • Take a picture of the original wiring connections before removing the old part.
  • Ensure the new relay and overload assembly is securely seated on the compressor pins.
  • Wear safety gloves to protect your hands during installation.
